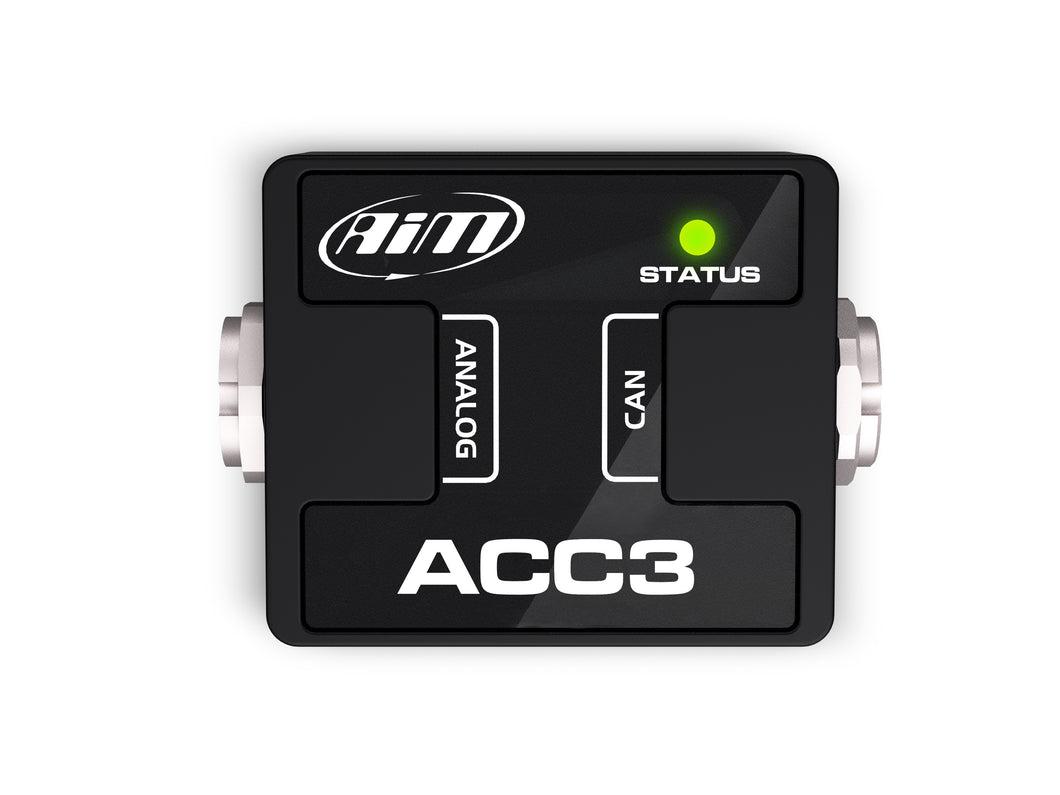

ACC3 - 4AN 719 - CAN 50 cm

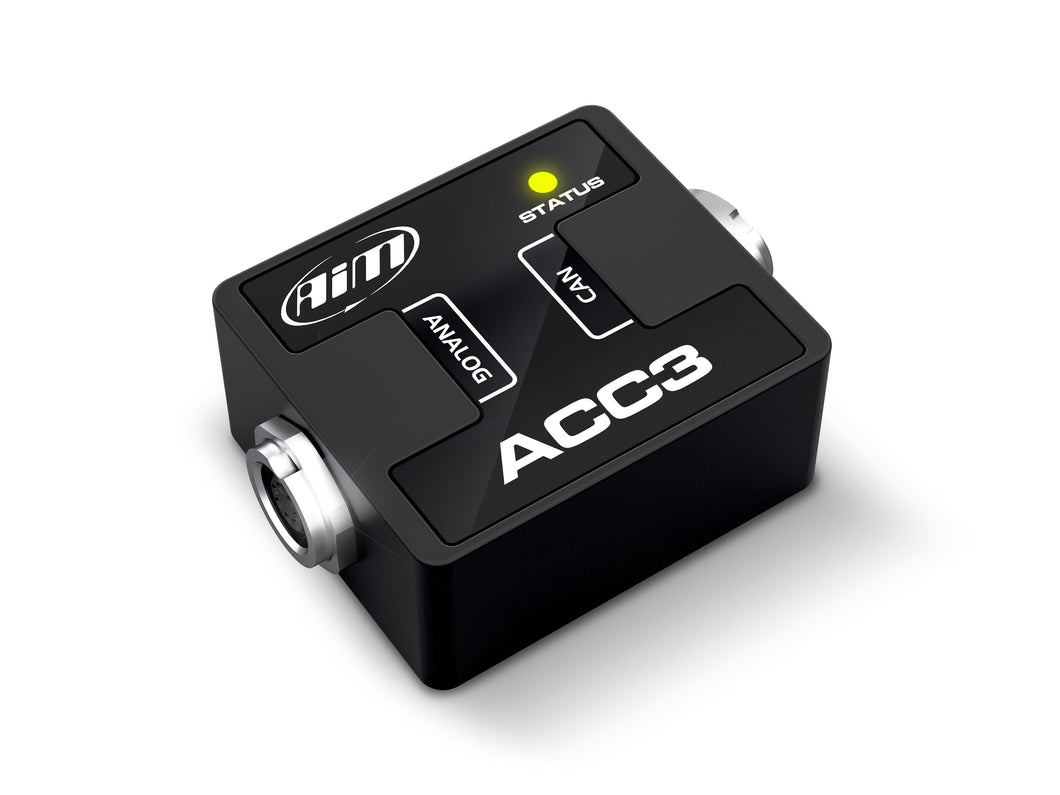

The compact Analog CAN Converters
ACC3 is available in two versions:
ACC3
ACC3 Open
Connectable to
AiM devices*
Other devices
Analog channels
4 fully configurable channels, 1 kHz each: TC, TR, 0÷5 V, 0÷12 V
Speed inputs
2 (AN3-AN4), max frequency 10 kHz, internal pull-up for open drain/collector input
External power
9÷15 V

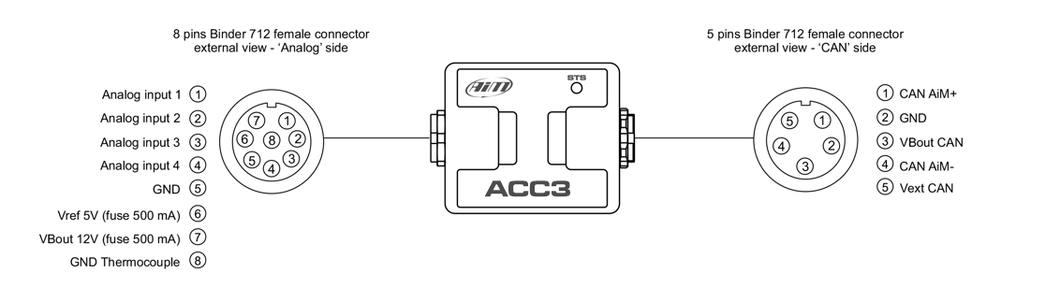

Connection
1 Analog 8 pins Binder 712
+ AiM CAN 5 pins Binder 712
1 Analog 8 pins Binder 712
+ USB CAN 7 pins Binder 712
Material
PA6 30% glass

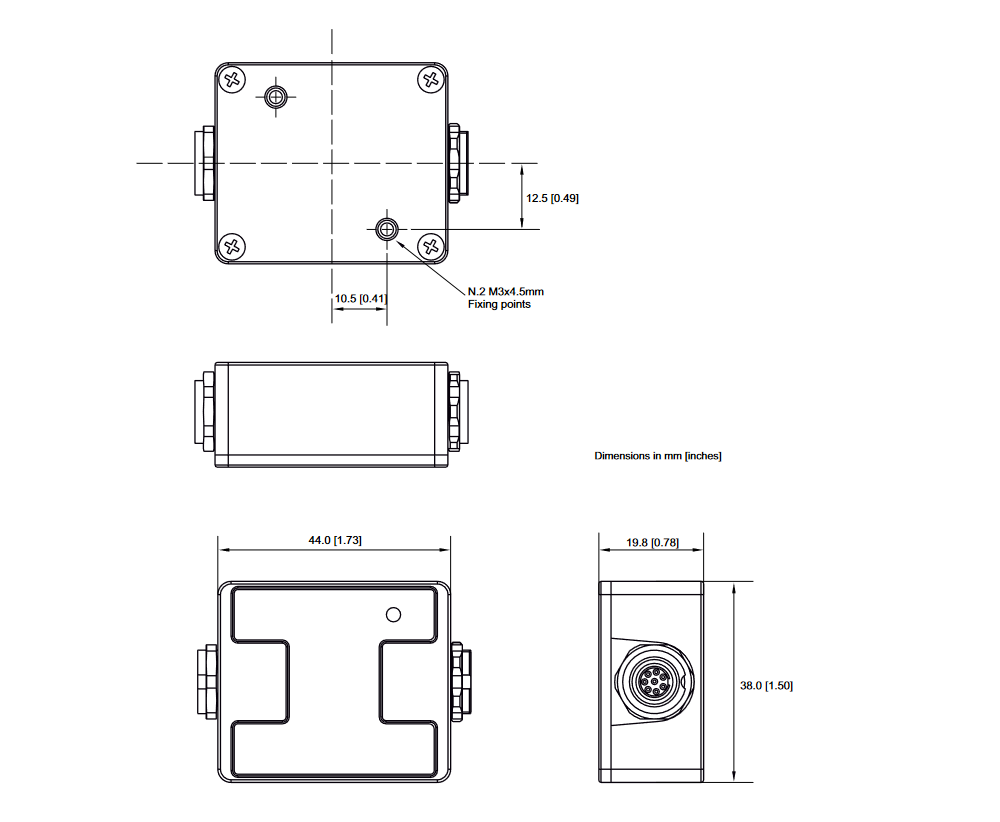

Dimensions
44.0 x 38.0 x 19.8 mm
Weight
50 g
Waterproof
IP65
* Not compatible with MXL2, MXS and MXG.
ACC3 and ACC3 Open manage up to 4 analog inputs to a max frequency of 200 Hz each:
Thermocouples
Thermoresistances
0÷5 V
0÷12 V
SPEED INPUTS
Both converters feature 2 speed inputs
at a maximum frequency of 10 kHz.
SENSORS CONNECTIONS
They can manage many different sensors, from thermocouples to sensors whose output is 0÷12V.

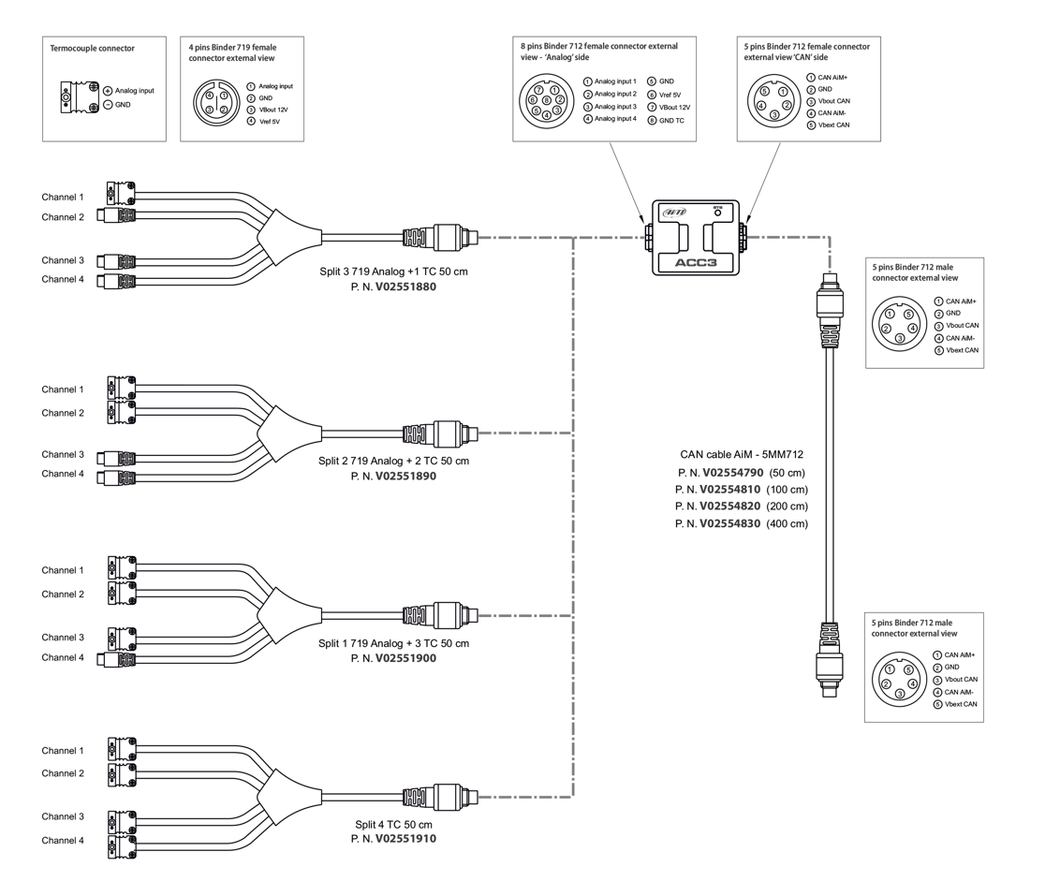

Please, note that the thermocouples require dedicated compensated cables, so different kits and different harnesses and cables are available.
CHANNEL CONFIGURATION

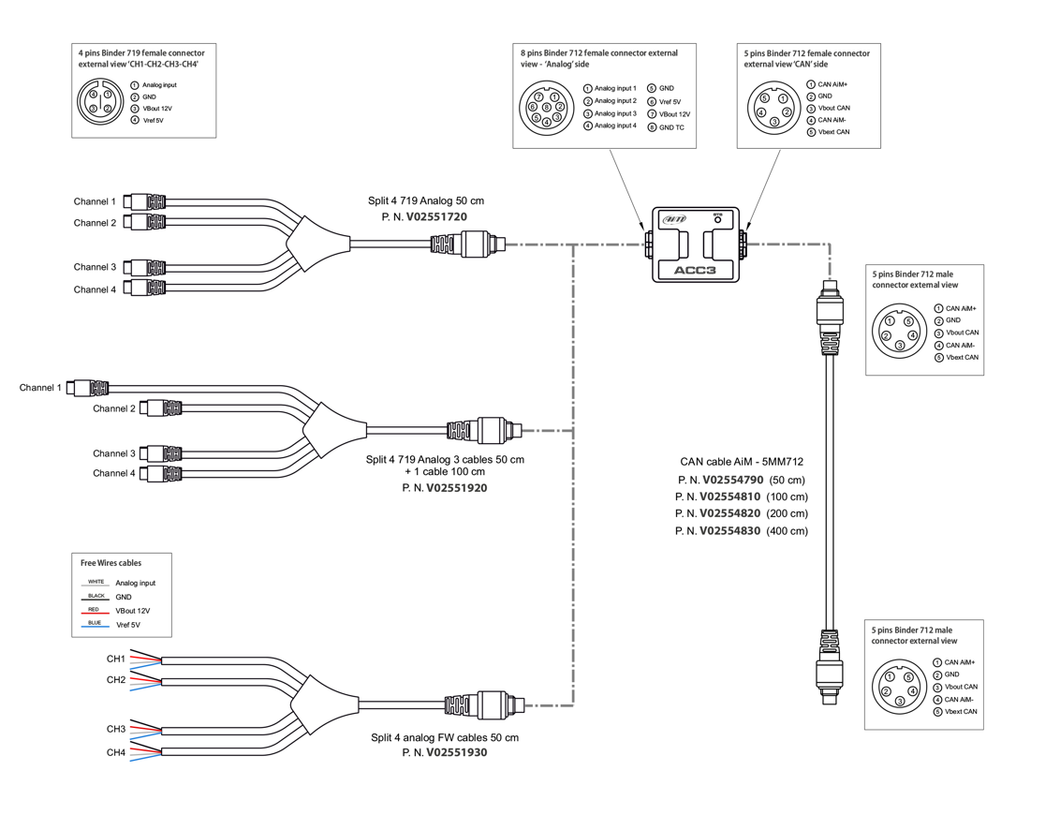

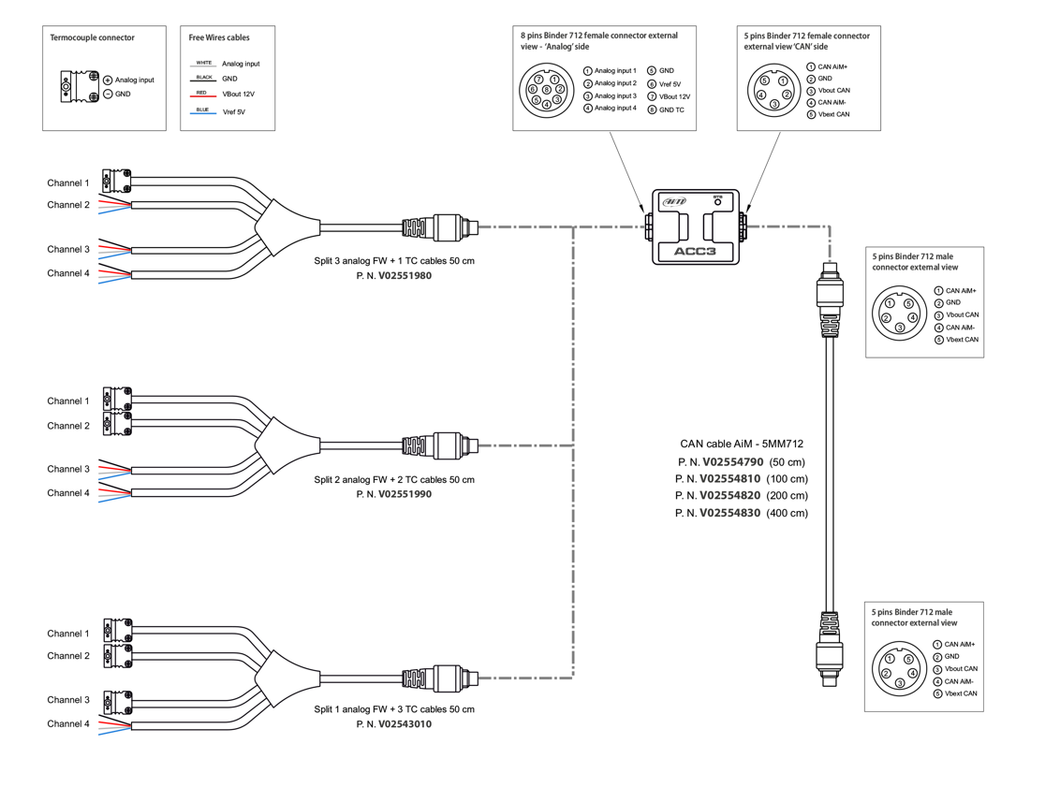

Once the proper split harness has been chosen between the available range, you can configure the channels according to the kind of sensor you connect to the converters.
ACC3 and ACC3 Open support up to four K type thermocouples to manage the temperatures.
ACC3 OPEN VERSION
EASY CONFIGURATION
Every OPEN device can be connected to a PC via a dedicated USB cable:
CAN OUTPUT
ACC3 Open allows to build a CAN Output to communicate with external devices.
You can set bit rate protocol, field messages and CAN payload details.
The converter can also be used as an AiM Expansion, without any issues or limitations.
SUSPENSION ANALYSIS
ACC3 and ACC3 Open can be connected to Eclipse sensors.
All the acquired data by AiM linear potentiometers can be managed through the new Suspension Analysis Tool in RaceStudio 3, for an even more complete performance analysis software.
